Fully Automatic Frozen French Fries Production Line
Automatic French Fries Making Machine
Frozen French Fries Maker Machine

Fully Automatic Frozen French Fries Production Line|French Fries Making Machine

  • Min Order:  1 set
  • Supply Quantity:  100 sets per month
  • Loading Port:  Qingdao Port
  • Description:   This automatic frozen french fries production line can be used to product large scale french fries, which realizes the fully automatic.

Introduction of the Fully Automatic Frozen French Fries Production Line:
Pre-washing Elevator---Pre-Washing Machine---Elevator---Emery Peeling Machine--- Sorting Conveyor---French Fries Cutting Machine---Elevator---Impurity Removing Machine---Rinsing Machine---Blanching Machine---Vibrating De-watering Machine---Air De-watering Machine---Stainless Steel Elevator---Continuous Fryer Machine---Oil Filting Machine---Vibrating Oil-Removing Machine---Air De-oil Line
Features of  Frozen French Fries Making Machine:
The french fries production line is specially designed for the processing of potato chips and potato chips, the process of which is based on the above process.The whole production line to realize the automatic production, only a few workers in the production process can be completed, a high degree of automation equipment, perfect functions, simple operation, easy cleaning, is the ideal potato chips processing equipment.The equipment is made of SUS304 high quality stainless steel, PLC computer automatic control, touch screen display operation, humanized design, is the ideal frying equipment first choice.
Advantages of the French Fries Making Machine:
A full set of equipment all flow operation, high automation degree, large output, and have low one-time investment, because the french fries production line price is factory price, we are one of the most professional french fries production line manufactures from china; low energy consumption, cover an area of an area small, convenient usage and maintenance, finished goods quality, high profit, etc.The whole assembly line consists of cleaning, peeling, slicing (strip), washing, blanching, rinsing, dehydrating, frying, oil removing, seasoning, packing, etc.We are free to provide recipes and technical instructions to make sure you fry high-quality potato chips.If you need a quick freeze line to realize the frozen french fries production process, add a quick freezer. This french fries industrial process realizes the fully automatic.

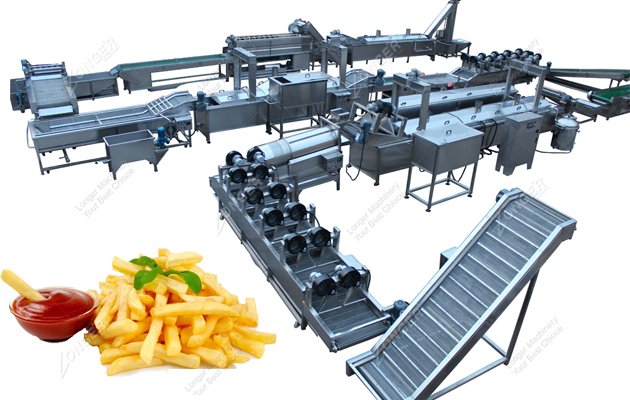

Fully Automatic French Fries Production Line

leave message:
Replace
Item
Power
Dimension
1. Elevator
0.75kw/380v/50Hz
2000*800*1600mm
2. Cleaning and Peeling Machine
4.75kw/380v/50Hz
3100*900*1500mm
3. Sorting Conveyor
0.75kw/380v/50Hz
3000*900*900mm
4. Potato Chips Cutting Machine
1.1kw/380v/50Hz
950*800*950mm
5. Rinsing Machine
5kw/380v/50Hz
5000*1600*900mm
6. Blanching Machine
70kw/380v/50Hz
6000*1600*950mm
7. Air De-water Machine
15kw/380v/50Hz
4000*1200*1400mm
8. Elevator
0.75kw/380v/50hz
1500*800*1300mm
9. Electric Heating Potato Chips Fryer Machine
203kw/380v/50Hz
7000*1200*2600mm
10. Oil Filter Machine
1.5kw/380V
1100*600*950mm
11. Vibrating De-oil Machine
1.5kw/380v/50Hz
1500*1000*1300mm
12. Air Drying Machine
8kw/380v/50Hz
4000*1200*1600mm
13. Elevator
0.75kw/380v/50Hz
2000*800*2200mm
14. Flavoring Machine
1.5kw/380v/50hz
2400*1000*1600mm
